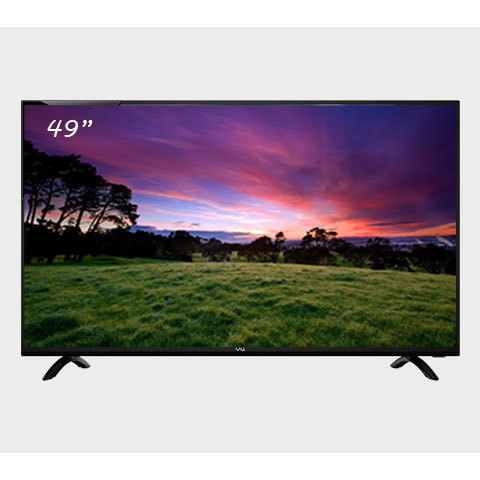

    VU 49" led with IR 10Touch Touchscreen / GST Invoice

    VU 49
    VU 49" led with IR 10Touch Touchscreen / GST Invoice
    Product Code : 37
    Brand Name : VU
    Price And Quantity
    • Unit of Measure
    • ,
    Product Specifications
    • Working Temperature
    • 5°C ~ 45°C Celsius (oC)
    • Type
    • Touch Screen Monitor
    • Brightness
    • 450 (nit) ISO
    • Viewing Angle
    • 178 / 178 (Degrees)
    • Max Resolution
    • 1920 x 1080 (Pixel)
    • Contrast Ratio
    • 1000000:1
    • Dimension(L*W*H)
    • 87 x 1106 x 646 mm Millimeter (mm)
    • Power Consumption
    • 110 (Watt) Watt (W)
    • Weight
    • 16.1 KG Kilograms (kg)
    Product Description

    VU 49" led with IR 10Touch Touch screen

    Touch Screen Details

    Infrared touch screen technology

    Infrared touch screen is to use a dense matrix of infra-red x, y directions to detect and locate the user's touch. Infrared touch screen installed in front of the monitor box outside a circuit board, circuit board arranged on four sides of the screen infrared led and an infrared receiver and corresponding anyway cross the infrared matrix.

    When users touch the screen, fingers will be blocked anyway after the location for both infrared and therefore can judge the position of the touch points on the screen .it can detect essentially any input including a finger, gloved finger, stylus or pen.

    49 inch Infrared touch screen

    • 10 multi touch point

    • 1920*1080 Resolution, USB

    • Withstands severe environments

    • Stable, no-drift calibration performance

    • Material is tempered glass with high light transmittance

    • Finger, gloved hand and touch pen activation

    • Operable in various light conditions, indoor and outdoor

    • Our products have passed CE, FCC, ROHS certification!

    Rugged Indoor Corporate Displays

    • Designed to meet Corporate performance experience in terms of longer duration

    • With Rugged Power supply to ensure long operating hours

    • RGB Pixel & Color to tune with live content Performance

    • Wide Temperature: 0 to 55 Degree Celsius

    • Extensive advanced anti burn-in & image-retention features

    • Designed to withstand long operating hours with thermal characteristics

    • Built in the internal design for proper heat dissipation in both portrait and landscape modes

    • Additional features to dissipate heat

    • Compatibility with PCs and AV standards

    Technical  Details

     Panel
     Panel  A+
     Display size (Diagonal)  49"
     Backlit Type  Direct LED
     Screen Resolution  1920 x 1080 (Pixel)
     Brightness  450 (nit)
     Dynamic contrast ratio  1000000:1
     Viewing Angle (Horiz / Vert)  178 / 178 (Degrees)
     Response Time  6.5 (ms)
     Connectivity
     HDMI  2
     Component / Y Pb (Cb) Pr (Cr)  1
     Audio L/R for component input  1
     AV input  1
     USB interface  2
     VGA input  1
     Audio L/R for VGA input  1
     Image control
     Zoom function with: 4:3, 16:1, Auto, Zoom 1, Zoom  Yes
     1:1 Pixel mapping  Yes
     Still image  Yes
     Sound
     Audio output  8 + 8 (Watt)
     Automatic volume level (AVL)  Yes
     Audio equalizer  Yes
     Power
     Input Power Supply  100V ~ 240V AC 50/60Hz
     Environmental Condition -temperature  5°C ~ 45°C
     Environmental Condition -humidity  20% to 80% RH
     Power Consumption  110 (Watt)
     Stand By Power  0.1 (Watt)
     Accessories
     Remote controller  1 (Qty)
     Battery (size / quantity)  AAA / 2
     Power cord  1 (Qty)
     Cable tie  1
     User manual  1
     VESA wall mount dimensions (Horiz/ Vert)  200 X 200 (mm)
     Weight & Measurement
     Dimensions(W x H x D)  1106 x 646 x 87 (mm)
     Weight with stand  16.1 KG
     Weight without Stand  12.6 KG
     Warranty
     Warranty
     1 Year


    Trade Information
    • Delivery Time
    • 2 - 3 Dys Days
    • Main Domestic Market
    • All India
