    SAW touch screen technology

    SAW touch screen technology
    SAW touch screen technology
    Product Code : 44
    Product Description

    SAW touch screen technology :

    Surface Acoustic Wave (SAW) touch screen uses ultrasonic waves that pass over the touchscreen panel. When the panel is touched, a portion of the wave is absorbed. This change in the ultrasonic waves registers the position of the touch event and sends this information to the controller for processing. Surface wave touchscreen panels can be damaged by outside elements. Contaminants on the surface can also interfere with the functionality of the touchscreen.

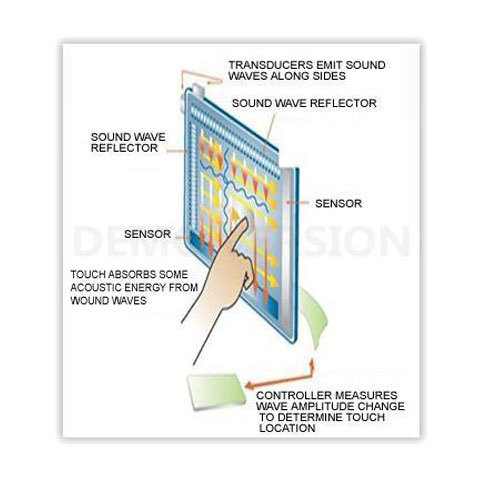

    Surface Acoustic Wave (SAW) touch screen is based on sending acoustic waves across a clear glass panel with a series of transducers and reflectors. When a finger touches the screen, the waves are absorbed, causing a touch event to be detected at that point. SAW touch screen technology is recommended for public information kiosks and other high traffic indoor environments.

    17 inch SAW touch screen:

    • Can withstand more than 35000000 point
    • 4096x4096 Resolution, USB or RS232 Interface
    • Superior image clarity with high light transmission
    • High accuracy and sensitivity
    • Glass Material,Durability, deep scratch resistance and abrasion
    • Finger, gloved hand and touch pen activation
    • Sensitive and fast response
    • Our products have passed CE, FCC, ROHS certification!

    Product Specification:

     Interface Type:

     USB or RS232

     Resolution

     4096x4096

     Screen Ratio

     4:3/16:10

     Material

     Glass

     Certificates

     CE, FCC, RoHS

     Input method

     Finger or touch pen

     Position accuracy

     2~5mm

     Operating Voltage

     DC ≤10V

     Operating current

     5~25mA

     Response time

     Less than 10ms

     Touch action force

     30~80g

     Operating temperature

     -10°C~60°C

     Storage temperature

     -40°C~70°C

     Surface hardness

     ≥5H

     Working environment

     Under sunlight, indoor and outdoor

     Transparency

     ≥90%

     Isolation resistance

     ≥20MΩ DC 25V

     The number of hits

     ≥35,000,000/point

     Support Systems

     Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac

    19 inch SAW touch screen :

    • Can withstand more than 35000000 point
    • 4096x4096 Resolution, USB or RS232 Interface
    • Superior image clarity with high light transmission
    • High accuracy and sensitivity
    • Glass Material,Durability, deep scratch resistance and abrasion
    • Finger, gloved hand and touch pen activation
    • Sensitive and fast response
    • Our products have passed CE, FCC, ROHS certification!

    Product Specification :

     Interface Type:

     USB or RS232

     Resolution

     4096x4096

     Screen Ratio

     4:3/16:9/16:10

     Material

     Glass

     Certificates

     CE, FCC, RoHS

     Input method

     Finger or touch pen

     Position accuracy

     2~5mm

     Operating Voltage

     DC ≤10V

     Operating current

     5~25mA

     Response time

     Less than 10ms

     Touch action force

     30~80g

     Operating temperature

     -10°C~60°C

     Storage temperature

     -40°C~70°C

     Surface hardness

     ≥5H

     Working environment

     Under sunlight, indoor and outdoor

     Transparency

     ≥90%

     Isolation resistance

     ≥20MΩ DC 25V

     The number of hits

     ≥35,000,000/point

     Support Systems

     Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac

    Warranty :  1 Year Carry In Mumbai Service Center Warranty / No Warranty for burn and damage.
