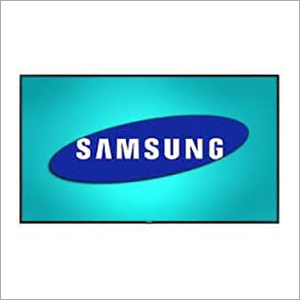

Samsung ED40D 40 led with IR 10Touch Touch screen

Samsung ED40D 40 led with IR 10Touch Touch screen
Samsung ED40D 40 led with IR 10Touch Touch screen
Product Code : 41
Product Description

Infrared touch screen technology

Infrared touch screen is to use a dense matrix of infra-red x, y directions to detect and locate the user's touch. Infrared touch screen installed in front of the monitor box outside a circuit board, circuit board arranged on four sides of the screen infrared led and an infrared receiver and corresponding anyway cross the infrared matrix.

When users touch the screen, fingers will be blocked anyway after the location for both infrared and therefore can judge the position of the touch points on the screen .it can detect essentially any input including a finger, gloved finger, stylus or pen.

40 inch Infrared touch screen:

  •  10 multi touch point
  •  4096x4096 Resolution, USB
  •  Withstands severe environments
  •  Stable, no-drift calibration performance
  •  Material is tempered glass with high light transmittance
  •  Finger, gloved hand and touch pen activation
  •  Operable in various light conditions, indoor and outdoor
  •  Our products have passed CE, FCC, ROHS certification!

Product Specification:

Physical characteristic

  Standard color

  Black

  Material

  tempered glass

  Transparency

  ≥92%

  USB connector cable

  1500mm

  Minimum touch object

  ≥5mm

  Input method

  Finger,gloved hand,or opaque object

  Resolution

  4096x4096

Electrical characteristic

  Scan frequency

  60Hz

  Interface type

  USB2.0 or RS232

  Output format

  Coordinate output

  Response time

  15ms

  Touch accuracy

  2mm

  Working voltage

  DC +5V+/-5%

  Power supply

  USB

  Operation current

  180mA

Environmental suitability

  Working temperature

  -20℃~65℃

  Storage temperature

  -40℃~85℃

  Working humidity

  0~85% RH,non-condensing

  Storage humidity

  0~95% RH,non-condensing

  Light immunity

  Anti-glare

Raliability

  Touch times

  unlimited

  Flammability

  UL94V-0

  Certification

  CE,FCC,ROHS

Software characteristic

 Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac

Warranty :  1 year Carry In Mumbai Service Center Warranty / No Warranty for burn and damage.
