    Home » Products » Touch Screen Monitor » Samsung DC40E 40" led with IR 10Touch Touchscreen / GST Invoice

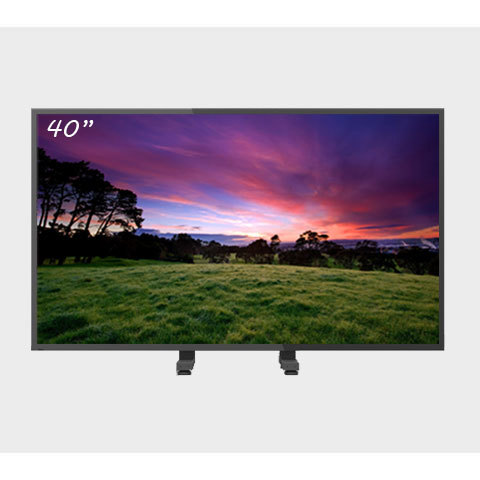

    Samsung DC40E 40" led with IR 10Touch Touchscreen / GST Invoice

    Samsung DC40E 40
    Samsung DC40E 40" led with IR 10Touch Touchscreen / GST Invoice
    Product Code : 38
    Brand Name : Samsung
    Price And Quantity
    • Unit of Measure
    • ,
    Product Specifications
    • Aspect Ratio
    • 5000:1
    • Working Temperature
    • 0ºC ~ 40ºC Celsius (oC)
    • Warranty
    • 1 Year
    • Type
    • Touch Screen Monitor
    • Screen Size
    • , 40
    • Brightness
    • 350nit cd/m
    • Viewing Angle
    • 178° / 178°
    • Contrast Ratio
    • 5000:1
    • Response Time
    • 1920 x 1080 Days
    • Dimension(L*W*H)
    • 1.96 x 35.7 x 20.7 inch Inch (in)
    • Weight
    • 6.89 KG Kilograms (kg)
    • Power Consumption
    • Typical [W / H] : 36W | Max [W / H] :121W | Sleep Mode : Less than 0.5W | Off Mode : Less than 0.5W Watt (W)
    Product Description

    Samsung DC40E 40" LED with IR 10Touch Touchscreen

    Touch Screen Details

    Infrared touch screen technology

    Infrared touch screen is to use a dense matrix of infra-red x, y directions to detect and locate the user's touch. Infrared touch screen installed in front of the monitor box outside a circuit board, circuit board arranged on four sides of the screen infrared led and an infrared receiver and corresponding anyway cross the infrared matrix.

    When users touch the screen, fingers will be blocked anyway after the location for both infrared and therefore can judge the position of the touch points on the screen .it can detect essentially any input including a finger, gloved finger, stylus or pen.

    40 inch Infrared touch screen

    • 10 multi touch point

    • 1920 x 1080 Resolution, USB

    • Withstands severe environments

    • Stable, no-drift calibration performance

    • Material is tempered glass with high light transmittance

    • Finger, gloved hand and touch pen activation

    • Operable in various light conditions, indoor and outdoor

    • Our products have passed CE, FCC, ROHS certification!

    Technical Details

     Panel
     Model Name  DC40E
     Screen Size  40"
     Type  60Hz D-LED BLU
     Screen Resolution  1920 x 1080
     Brightness  350nit
     Contrast Ratio  5000:1
     Viewing Angle (Horizontal/Vertical)  178° / 178°
     Response Time  8ms
     Orientation  Portrait / Landscape
     Sound
     Speaker Type  Built in Speaker (10W + 10W)
     Connectivity
     Input  RGB : Analog D-SUB, DVI-D
    Video : HDMI1, HDMI2, CVBS
    Audio : Stereo Mini Jack / RGB / DVI / HDMI / CVBS
    USB : USB 2.0 x 1
     Output  Audio : Stereo Mini Jack
     External Control  RS232C (In / Out) thru Stereo Jack, RJ45
     External Sensor  IR
     Power
     Type  Internal
     Power Supply  AC 100 - 240 V~ (+/- 10 %), 50/60 Hz
     Power Consumption  Max [W / H] :121W
    Typical [W / H] : 36W
    Sleep Mode : Less than 0.5W
    Off Mode : Less than 0.5W
     Features
     VESA Mount  200 x 200
     Stand Type  Foot Stand (Optional)
     Media Player Option Type  Embedded (Lite SoC), Setback Box (Attachable)
     Special  Hardware : Super Clear Coating, Temperature Sensor, Pivot Display, Button Lock, Clock Battery (168 Hrs Clock Keeping), Built in Speaker (10W x 2 )
    Software : Auto Source Switching & Recovery, RS232C / RJ45 MDC, Plug and Play (DDC2B), Built In Magic Info Lite , Firmware Update by Network, LFD New Home Screen
     Tuner  Yes
     Internal Media Player  MIPS 24K, 128KB L2 Cache, 650MHz processor, 512MB Main Memory Interface, Samsung Proprietary OS (VD Linux), 179 MB Storage
     Dimensions
     Set  35.7" x 20.7" x 1.96"
     Package  39.8" x 23.8" x 5.4"
     Weight
     Set  6.89 KG
     Package  9.20 KG
     Environmental Conditions
     Operating Temperature  0ºC ~ 40ºC
     Operating Humidity  10~80%
     Warranty
     Warranty  1 Year Onsite


    Trade Information
    • Delivery Time
    • 2 - 3 Days Days
    • Main Export Market(s)
    • Asia
    • Main Domestic Market
    • All India
