Home » Products » Touch Screen Monitor » Acer 15.6 LED with 5 Wire Resistive Touch

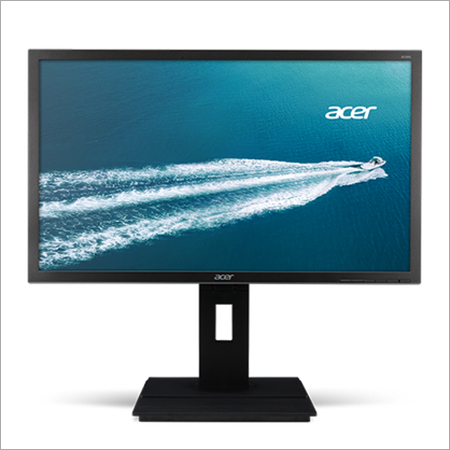

Acer 15.6 LED with 5 Wire Resistive Touch

Acer 15.6 LED with 5 Wire Resistive Touch
Acer 15.6 LED with 5 Wire Resistive Touch
Product Code : 32
Product Description

Technical Information:

Model Name

P166HQL

Part Number

UM.ZP6SS.B01

Screen Size

39.6 cm (15.6")

Screen Mode

WXGA

Response Time

16 ms

Aspect Ratio

16:09

Horizontal Viewing Angle

90°

Vertical Viewing Angle

50°

Backlight Technology

LED

Adjustable Display Angle

Yes

Adjustable Display Height

No

Adjustable Display Pivot

No

Wall Mounting

Yes

Video



Maximum Resolution

1366 x 768

Standard Refresh Rate

60 Hz

Colour Support

16.7 Million Colours

Contrast Ratio

100,000,000:1

Brightness

200 cd/m²

Interfaces/Ports



VGA

Yes

Power Description



Input Voltage

110 V AC - 220 V AC

Operating Power Consumption

10 W

Standby Power Consumption

460 mW

Off-Mode Power Consumption

350 mW

Physical Characteristics



Colour

Black

Height

294.6 mm

Width

375.9 mm

Depth

160 mm

Weight (Approximate)

1.50 kg

Touch Screen Details :

Introduction of 5 Wire Resistive Touch Screen:

  • ThinPC 5 Wire Resistive Touch Screen is of the most extensive application. It works by any kinds of physical touches, such as finger, gloved hand, rubber, etc. It is liquid resistance and contamination proof and even works in bad environment such as foul, dirt, greasiness, etc.
  • ThinPC 5 Wire Resistive Touch Screen supports USB interfaces for LCD flat display: 15.6".

5 Wire Resistive Touch Screen Benefits:

  • Long lifetime (almost ten times of 4 Wire Resistive Touch Screen)
  • Finger, gloved hand and stylus activation
  • Contaminant proof and liquid resistance
  • High accuracy and durability
  • High resolution and sensitivity

5 Wire Resistive Touch Screen Working Principle:

  • The 5 Wire Resistive Touch Screen is a two layer structure,
  • ITO glass substrate with one side uniform resistive ITO coating.
  • A very thick polyester ITO film is tightly suspended over the top of ITO glass substrate. This ITO film has a hard, durable coating on the outer side, on an inner side with ITO coating.
  • The ITO glass and the ITO film is separated by printed small, transparent insulation spacer dots.
