5 Wire Resistive touch Screen Technology

5 Wire Resistive touch Screen Technology
5 Wire Resistive touch Screen Technology
Product Code : 42
Product Description

5 Wire Resistive touch screen technology

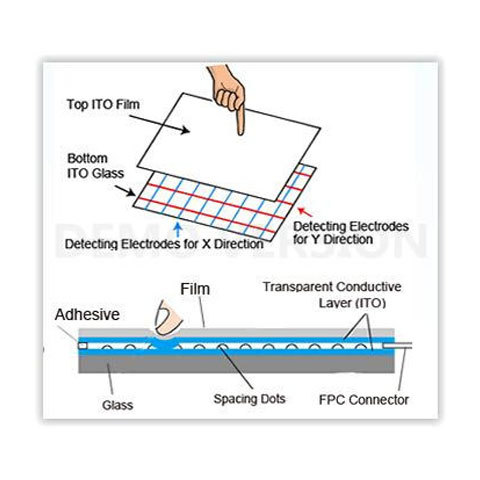

5 wire resistive touch screen is a two-layer structure, two materials (film or glass) with ITO are attached with a gap between them so that the ITO layers are facing each other. Touch input will be made as the top layer is pressed down and the two ITO layers contact. There are insulators called spacing dots between the top and bottom ITO layers. These spacing dots prevent unintended contacts (inputs) of the ITO layers when not pressed.

When the top ITO film is pressed and makes contact with the bottom glass, the contacted area will be detected via electrical conduction. The notable characteristic of 5 wire resistive is that only the bottom glass has detecting function. Even if the top ITO film is damaged, the detecting function will not be affected (except for the damaged area).

15.6 inch 5 wire Resistive touch screen:

  • Can withstand more than 35,000,000 point
  • 4096x4096 Resolution
  • USB or RS232 Interface
  • High accuracy and sensitivity
  • Glass + Film Material
  • Finger, gloved hand and touch pen activation
  • Adapt to adverse environmental conditions such as liquid splashes and wash down
  • Our products have passed CE, FCC, ROHS certification!

 Product Specification:

 Interface Type:

 USB or RS232

 Resolution

 4096x4096

 Screen Ratio

16:9

 Material

 Glass + Film

 Certificates

 CE, FCC, RoHS

 Input method

 Finger or touch pen

 Position accuracy

 2~5mm

 Operating Voltage

 DC ≤ 10V

 Operating current

 5~25mA

 Response time

 Less than 10ms

 Touch action force

 20~100g

 Operating temperature

 -10°C~60°C

 Storage temperature

 -20°C~70°C

 Surface hardness

 3H

 Working environment

 Under sunlight, indoor and outdoor

 Transparency

 ≥80%

 Isolation resistance

 ≥20MΩ DC 25V

 X.Y resistance

 30Ω~350Ω according to the size

 Linearity

 ≤2%

 The number of hits

 ≥35,000,000/point

 Support Systems

 Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac

21.5 inch 5 wire Resistive touch screen:

  • Can withstand more than 35,000,000 point
  • 4096x4096 Resolution
  • USB or RS232 Interface
  • High accuracy and sensitivity
  • Glass + Film Material
  • Finger, gloved hand and touch pen activation
  • Adapt to adverse environmental conditions such as liquid splashes and wash down
  • Our products have passed CE, FCC, ROHS certification!

Product Specification:

 Interface Type:

 USB or RS232

 Resolution

 4096x4096

 Screen Ratio

16:9

 Material

  Glass + Film

 Certificates

 CE, FCC, RoHS

 Input method

 Finger or touch pen

 Position accuracy

 2~5mm

 Operating Voltage

 DC ≤ 10V

 Operating current

 5~25mA

 Response time

 Less than 10ms

 Touch action force

 20~100g

 Operating temperature

 -10°C~60°C

 Storage temperature

 -20°C~70°C

 Surface hardness

 3H

 Working environment

 Under sunlight, indoor and outdoor

 Transparency

 ≥80%

 Isolation resistance

 ≥20MΩ DC 25V

 X.Y resistance

 30Ω~350Ω according to the size

 Linearity

 ≤2%

 The number of hits

 ≥35,000,000/point

 Support Systems

 Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/Linux/Mac
